Dashboard components
Avg. Pass Score chart — a time series plotting two values for the active policy scope: Avg. Pass Score % and Total Checks, each on its own axis. Hovering a point opens a tooltip with that day’s exact figures. The selector at the top right sets the window — Last 7 Days, Last 3 Months, or Last 6 Months.If the chart looks empty, widen or narrow the period. A long window with only recent scan data renders as a flat or blank plot.
- Passed — configurations that comply with the policy.
- Failed — configurations where a misconfiguration or security risk was detected.
- Not Applicable — rules that do not apply to the host’s OS environment.
Color coding and tooltips
Green marks passed checks, red marks failed checks, and gray or muted styling marks Not Applicable ones. Hovering a bar chart or percentage meter reveals a tooltip with the raw counts and exact percentages behind the visual.Scoping to one policy
The Select Policy combobox at the top of the page re-filters every metric instantly:- All Policies aggregates scores and check tallies across every benchmark.
- A specific policy recalculates the pass rate gauge and status metrics using only the endpoints evaluated under that benchmark.
Read the dashboard
-
Go to Compliance → Hardening Assessments for your global posture and benchmark summaries.
-

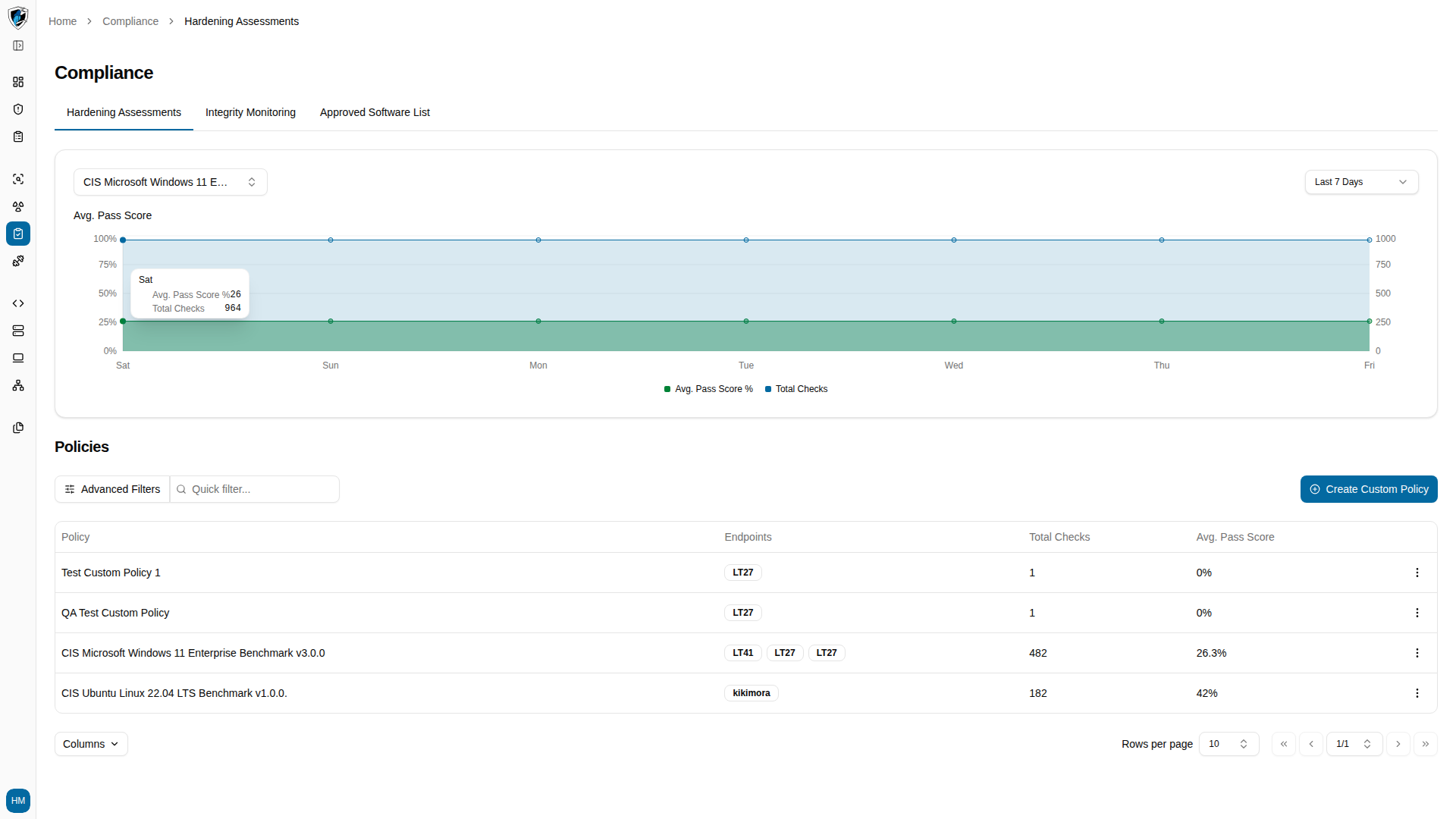

Click the Select Policy combobox and pick a benchmark, such as CIS Microsoft Windows 11 Enterprise Benchmark v3.0.0, to rescope every chart to it.
